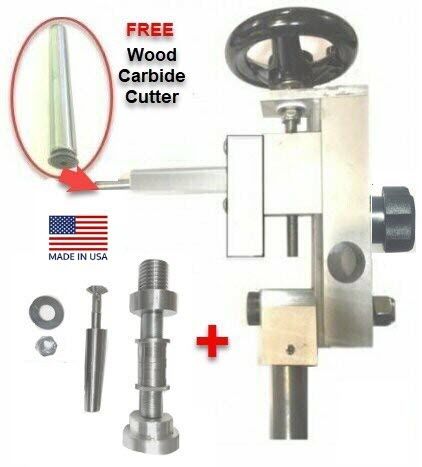

EZ Sphere COMBO Jig w/ Single Spindle Thread Cutter Add-on Kit
Cut a perfect sphere or cut wooded threads with the same jig
The EZ Sphere COMBO jig with Threading spindle add-on kit allows you to cut a perfect sphere every time or cut perfect wood threads using your wood turning lathe. Sphere size range is from 1in up to 8in.
This combo deal saves you $49!
Sphere Cutter Primary Benefits
- Make spheres that are perfect easily
- Proven and unique design which cuts when swinging OVER the top of the wood
- Achieve consistent results that is repeatable from 1in to 8in dia.
- Supports both a Carbide cutter for Wood and or Negative Rake for Resin.
- Alignment and repeatability is a snap
- Easy to learn and master
Thread Cutter Primary Benefits
- Thread all types of woods including Cherry, Walnut and Maple
- Achieve consistent results that you can count on
- Exclusive "Zero Slop" spindle bushing design allows fine adjustment of tension
- Easy to learn and master
Why is an EZ Combo Jig in a class of it's own?
- Made and Supported in the USA
- Proven design which is precise & rigid
- Setup is quick and easy
- Incredible value
Product Contents:
1ea - EZ Sphere Combo Jig with Threading Spindle add-on Kit
1ea - Carbide tool holder with wood carbide bit
1ea - 10 TPI Threaded Spindle with Chuck Adapter and Bushing Set and Handle*
1ea - 3/4in Dia HSS Thread Cutting bit
1ea - 3/8in Collet MT2
1ea - Banjo Post with Height Ring
1ea - Step by Step Product Guide with YouTube Video Links
* Options - a single 10tpi coarse spindle is included or chose to swap it for a 16tpi fine spindle or get both.
NOTE - Because of the demand for this product it may take 7-9 business days to manufacture and test this jig prior to shipping.
What is repeatability?
Our innovative "swing over the top" sphere jig design allows for easy repeatability. Once roughed by hand it takes the sphere jig 2-3 mins to make them a perfect 1-1/2in diameter sphere!
Will it really create a perfect sphere?
Yes a true perfect sphere can be easily achieved using our jig. The red outline is a prefect sphere overlay which was placed over a picture of a sphere cut with our carbide wood bit. A little sanding and you are done!
What is a Wood Lathe Drawbar?
A draw bar is used to secure the cutter in the lathe spindle hole.
Our kit includes the Collet MT#2, Cutter and the Black Knob with Nut to create a draw bar.
You need to provide the 3/8in x 16 tpi All Thread Rod which you can purchase at a Hardware Store.
