EZ Open/Closed Segment Vertical Jig Post (Wood turning)

Use your existing EZ Index Wheel !

Making an Open/Segment Vertical Jig has never been easier by using one of our Open/Segment Vertical Jig Post.

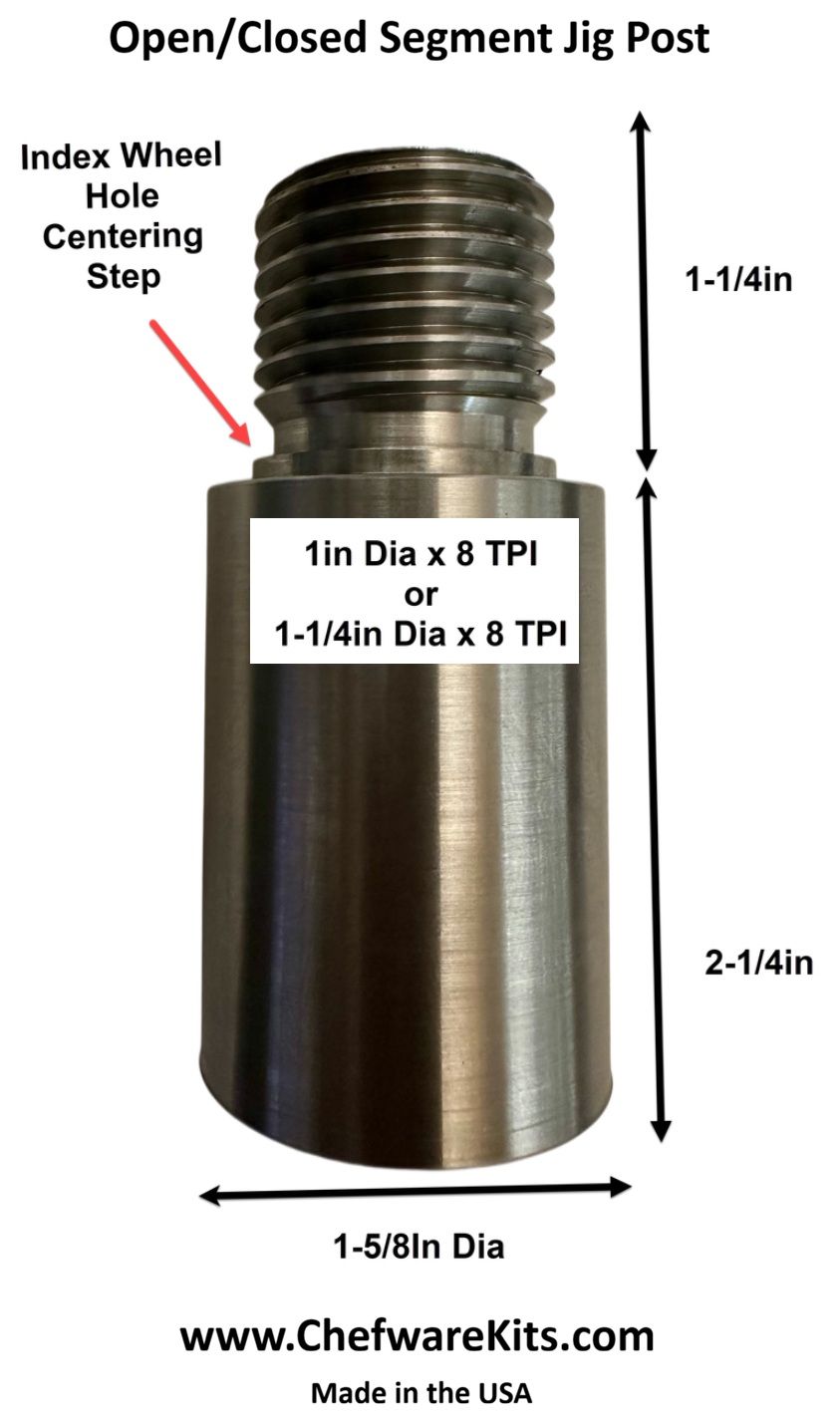

Our EZ Steel Index wheel slips over a machined step in the jig post allowing it to be perfectly centered which is held in place using a scroll chuck or faceplate.

Once the Index Wheel is secured to the vertical post you slip it into a hole which you drill into some MDF boards.

Chose a 1-1/4in x 8tpi or a 1in x 8tpi thread post to match your needs.

Includes:

1 - Open/Closed Segment Steel Jig Base

Optional:
1 - 1-5/8in Height Ring - A height ring can be helpful to allow fine adjustments to be made of how far above the MDF the index wheel will spin.

Made in USA

Here is an example of our Vertical Jig Post being used to create an Open Segment piece.

NOTE - After your purchase one of our vertical jig post you still need other items to make the completed jig pictured below. ie: EZ Index Wheel, MDF Wood, aluminum channel pieces etc

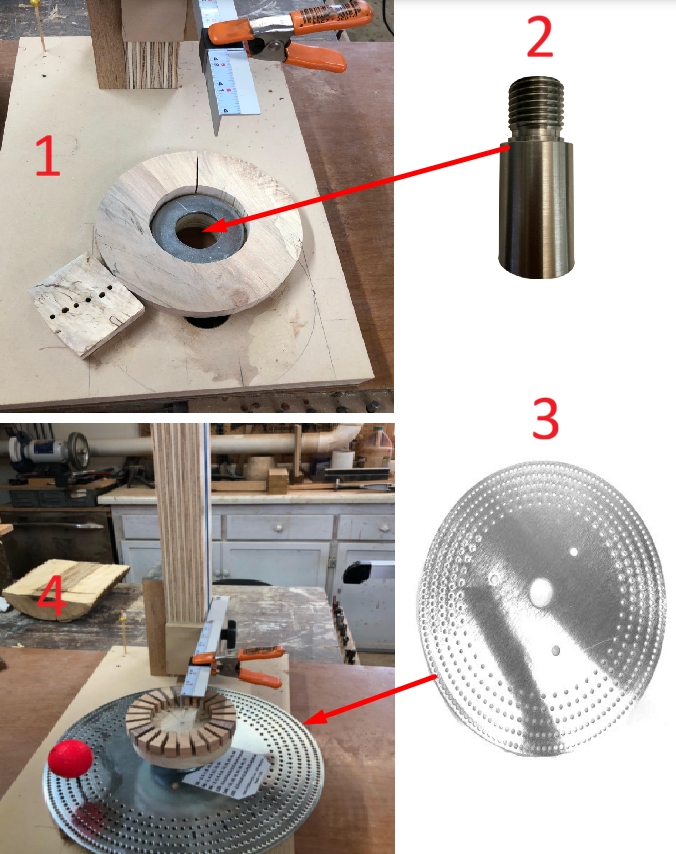

1 - Assemble your Jig base

- MDF Main Base
- EZ Index Wheel Support Block
- Vertical Aluminum Channel Piece
- Pin Locking Block

2 - Insert the Vertical Jig Post (shim if needed)

3 - Place the EZ Index Wheel over the machined step on the Vertical Jig Post

4 - Secure the Index Wheel to the Vertical Jig post using a faceplate etc.

5 - Use your new Vertical Open/Closed Segment Jig!
