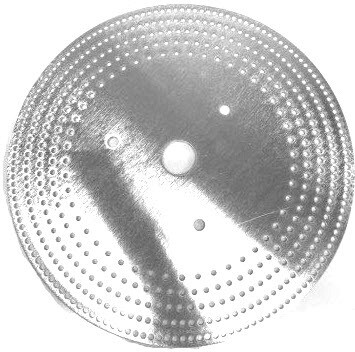

EZ Index Segmented Wheel Steel 12in dia with 1in center hole for woodturning lathe

[tab name='Description'] Make perfectly spaced holes on your project and straight lines with this CNC produced Index wheel.

STEEL = NO FLEX = PERFECTLY STRAIGHT LINES

Steel ensure you will have no flex when using our Index wheel unlike home made wheels made from plastic, resin or wood.

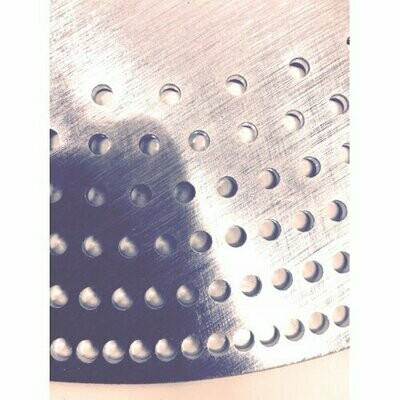

6 Rows of Holes: 192, 144, 120, 96, 88, 56 allows a large amount of flexibility

Easily mark which holes you will be using with colored sharpie markers and then wipe it clean with alcohol.

Zinc plated for durability

Note - A Jet 1221 midi lathe requires the 10in Index wheel.

[tab name='Install Instructions'] 1 - Remove your chuck.

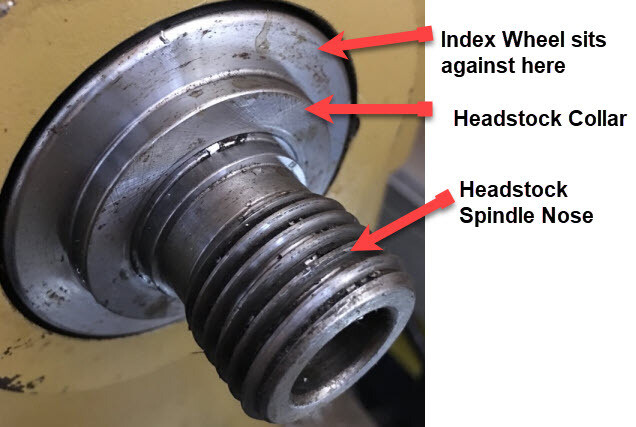

2 - Slide the Index wheel over the threaded spindle and over the machined collar behind it.

3 - Install your chuck over the threaded spindle and tighten it against the index wheel securing it in place.

4 - Your index wheel is now ready to be used. WARNING - Never turn on the power to your lathe with an index wheel attached.

[tab name='FAQ']Where is it made?

Our index wheels are made in New Hampshire?

Why is the wheel better then homemade wood wheels or plastic wheels?

Because steel is much more stiff and wont flex which results in perfectly strait lines.

Will the steel rust?

No it is zinc coated however rubbing the wheel with the same compound used for cast iron table saws is also a good idea.

These holes can be used to mount the wheel in unique configurations, if needed.
