Steel closed segment jig base that fits our Index Wheel's center hole making it easy to create a accurate vertical jig to do closed segment woodturning.
Once you slip the index wheel over the step which is machined into this jig base your chuck or faceplate will hold it in place and then you insert it into a hole that you drill into a piece of MDF.
The optional height ring will allow you to easily adjust the height of the index wheel. The height ring will sit flush on the MDF when you rotate the index wheel.
Includes:
1 - Closed Segment Steel Jig Base
Optional: 1 - 1-5/8in Height Ring
Made in USA

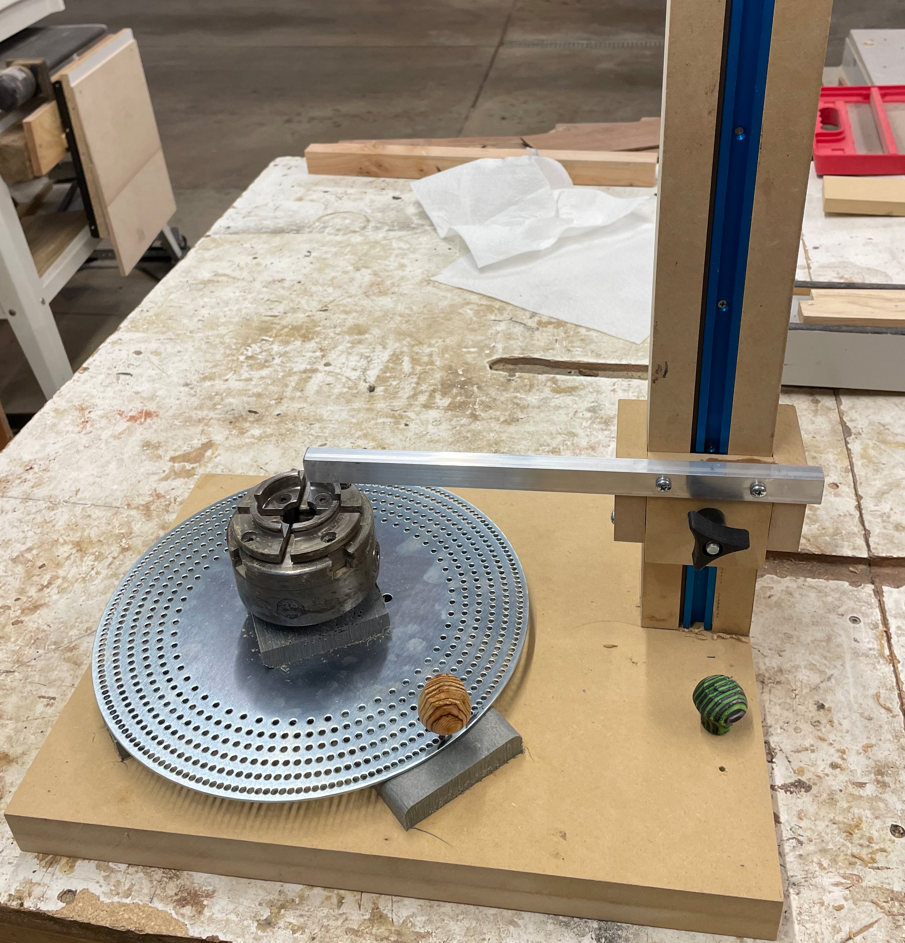

Here is an example of a Closed Segment Vertical Jig using our Closed Segment Steel Jig Base (which can not be seen since it is below the index wheel)
NOTE - Only the pictured item above is include so you have to purchase the additional items : Index Wheel, MDF Wood, aluminum channel pieces etc
