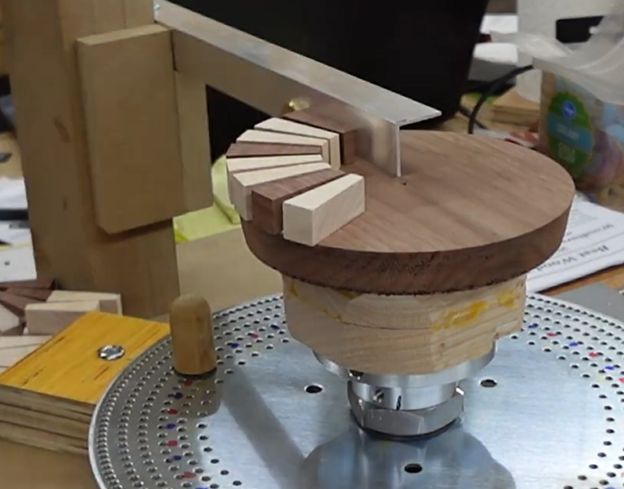

EZ Closed / Open Segment Vertical Jig w/ Steel Index Wheel (woodturning)

Everything you need except the wood - combo savings!

Making an Closed / Open Segment Vertical Jig has never been easier using this provided EZ Closed / Open Segment Vertical Jig w/ Steel Index Wheel Kit for Woodturning

3 key items are included in this kit making it easy to build the jig:

1 - Steel Open/Closed Segment Threaded Post
A machined steel threaded post which attaches our EZ Index wheel to the faceplate which is inserted into a hole drilled into the MDF base

2 - Steel 4x4 Vertical Post Base
A steel fabricated base which holds the vertical 4x4 wooden post exactly at 90 degrees.

3 - Steel EZ Index 12in Wheel
Our Steel Index wheel is the best you can buy for your wood turning lathe. Each one is CNC machined in NH, zinc coated and very precise and accurate for doing both close and open segmented woodturning pieces.

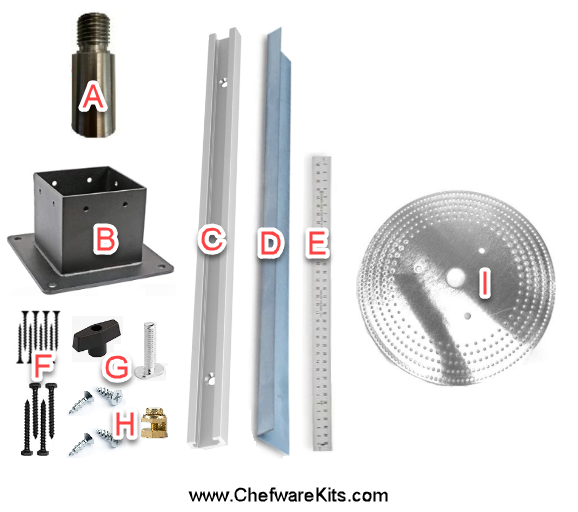

Here is the contents of this kit:

Includes:

A - 1ea - Open/Closed Segment Jig Threaded Post (Made in the USA)
(Used with the Index Wheel, Faceplate and MDF Base)
B - 1ea - Steel 4x4 Vertical Post Base
C - 1ea - Aluminum T-Channel Piece (15in length)
D - 1ea - Aluminum Angle Piece (15" length)
E - 1ea - Measuring Tape Sticker
F - 1 bag - Screws, Bolts, Washers etc (everything that is needed)
G - 1ea - Aluminum T-Channel Locking Knob Kit
H - 1ea - Brass Glue-up Stop Block
I - 1ea - EZ Index Wheel Steel 12in Diameter
J - 1ea - Assembly Guide (view)

You get everything you need in this kit expect the wood

The kit is designed to support building a piece that is 18in tall and 16in wide and can be expanded if needed.

View the Jig Assembly Guide (Click Here)

Watch the Lake Erie Woodturner on You tube using a vertical Jig with our EZ Index Wheel :

Lamp (Click Here) Bowl (Click Here)
