EZ Closed / Open Segment Vertical Jig Kit NO Index Wheel (woodturning)

Making a Closed / Open Vertical Segment Jig has never been easier by using your own EZ Index wheel with our EZ Open/Closed Segment Vertical Jig Kits!

2 key pieces are included in this kit making it easy to build:

1 - Threaded Vertical Segment Machined Post for MDF Base
A machined steel threaded post which attaches to our EZ Index wheel to the faceplate which is inserted into a hole drilled into the MDF base

2 - Steel 4x4 Vertical Post Base
A steel fabricated base which holds the vertical 4x4 wooden post exactly at 90 degrees.

Here is the contents of this kit:

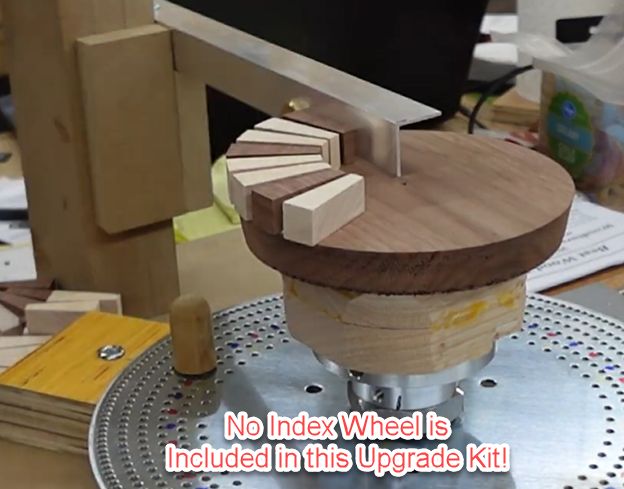

You have to have your own Index Wheel to use this kit!

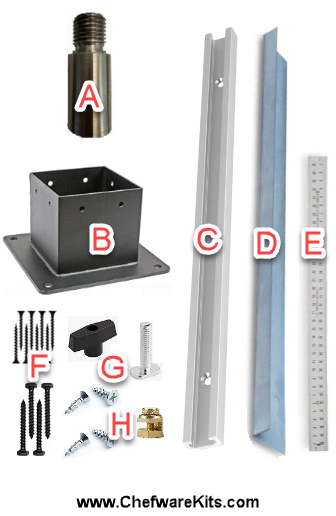

Includes:

A - 1ea - Open/Closed Segment Jig Threaded Post (Made in the USA)
(Used with the Index Wheel, Faceplate and MDF Base)

B - 1ea - Steel 4x4 Vertical Post Base

C - 1ea - Aluminum T-Channel Piece (15in length)

D - 1ea - Aluminum Angle Piece (15in length)

E - 1ea - Measuring Tape Sticker

F - 1 bag - Screws, Bolts, Washers etc (everything that is needed)

G - 1ea - Aluminum T-Channel Locking Knob Kit

H - 1ea - Brass Glue-up Stop Block

I - 1ea - Assembly Guide (view)

Everything you need is included except the wood and Index Wheel

The kit is designed to support building a piece that is 15in tall and 15in wide but can be easily updated for larger projects if needed.

View the Jig Assembly Guide (Click Here)

Watch the Lake Erie Woodturner on You tube using a vertical Jig with our EZ Index Wheel :

Lamp (Click Here) Bowl (Click Here)
