EZ Game Call (Duck, Deer, Turkey, Goose) Expanding Mandrel COMBO 3pc Set with Straight Shanks for your Wood turning lathe (Robust American Beauty, Jet, Powermatic, Laguna or RIkon etc)
SKU 00171
Save $32!!! on this combo set
These are the best Game call mandrel you can buy for making any type of game call using your woodturning lathe Our game calls (duck) mandrels have been machined in New England for over 12 years!
Once you use our expanding game call mandrel you will never go back to a pen mandrel or pin chuck. No more lost pins or slipping barrels!
Why our Expanding Mandrel?
Six expanding slots is the key! We machine Six Slots into the steel tip of our mandrel which ensures the best grip possible on the call body. Each slot is burr free also so the mandrel will not mark up the inside of the call barrel.
An expanding mandrel makes turning a call fun and you will be amazed how easy it is to slip on and slip off your piece with this new approach.
What is wrong with a traditional approach ?
Bushings, pins and pen mandrels are really terrible compared to using our expanding mandrel to turn a call. They all have a slow process to follow, slips easy, you loose parts and they don't work well with acrylics
Today pick up an expanding mandrel in the size you need to turn a Duck, Goose, Deer, Coyote or Turkey call.
American Designed - Made - Supported
Includes:

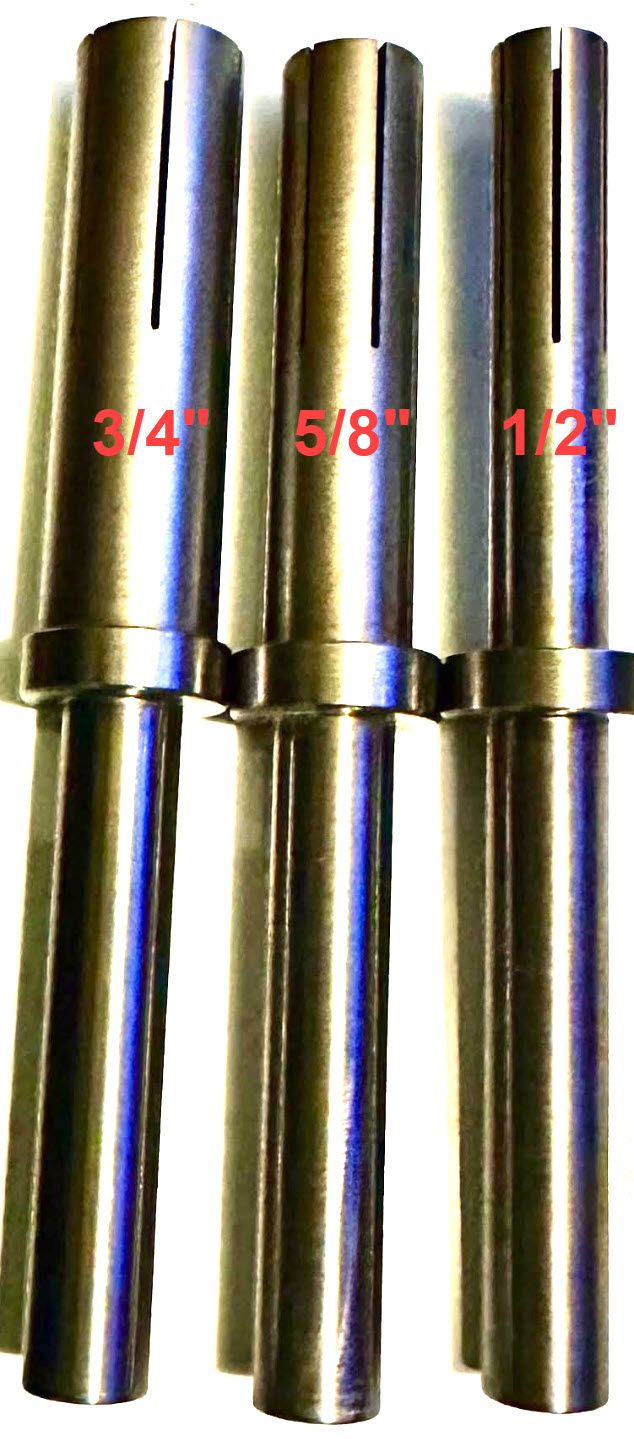

1ea - 1/2in dia. Expanding Game Call Mandrel with 1/2in dia. Straight Shank
1ea - 5/8in dia. Expanding Game Call Mandrel with 1/2in dia. Straight Shank
1ea - 3/4in dia. Expanding Game Call Mandrel with 1/2in dia. Straight Shank
3ea - Mandrel Screw
Straight Shank Length Options:
a - 4in Long 1/2in dia. Straight Shank
- secure the shank with a set of scroll chuck jaws
- custom application (cut to length)
b - 2in Long 1/2in dia. Straight Shank
- secure with a collet chuck

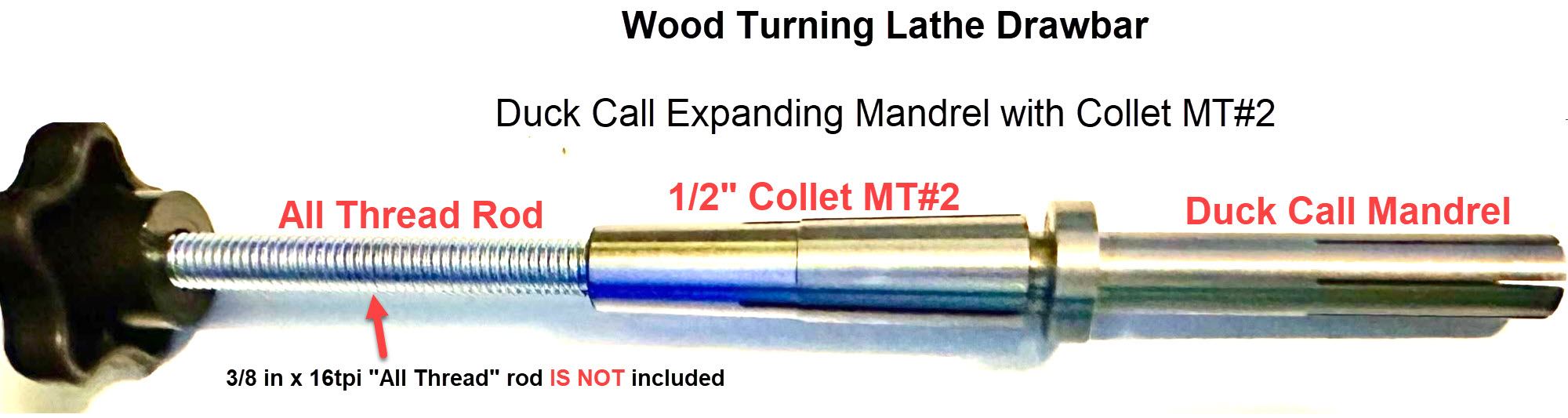

- secure with a 1/2in MT#2 collet (optional) using a drawbar (see pic below).
Note - This option has replaced our old MT#2 mandrel design.
Note - All Thread rod in inexpensive and can be purchased at any Hardware store or on Amazon.com. The piece of rod needs to be long enough to go through your Lathe's spindle head hole and exit your Lathe's handle hole. Once the draw bar is installed as you tighten the black knob the collet is "drawn" into the spindle hole and secures the mandrel in place.
